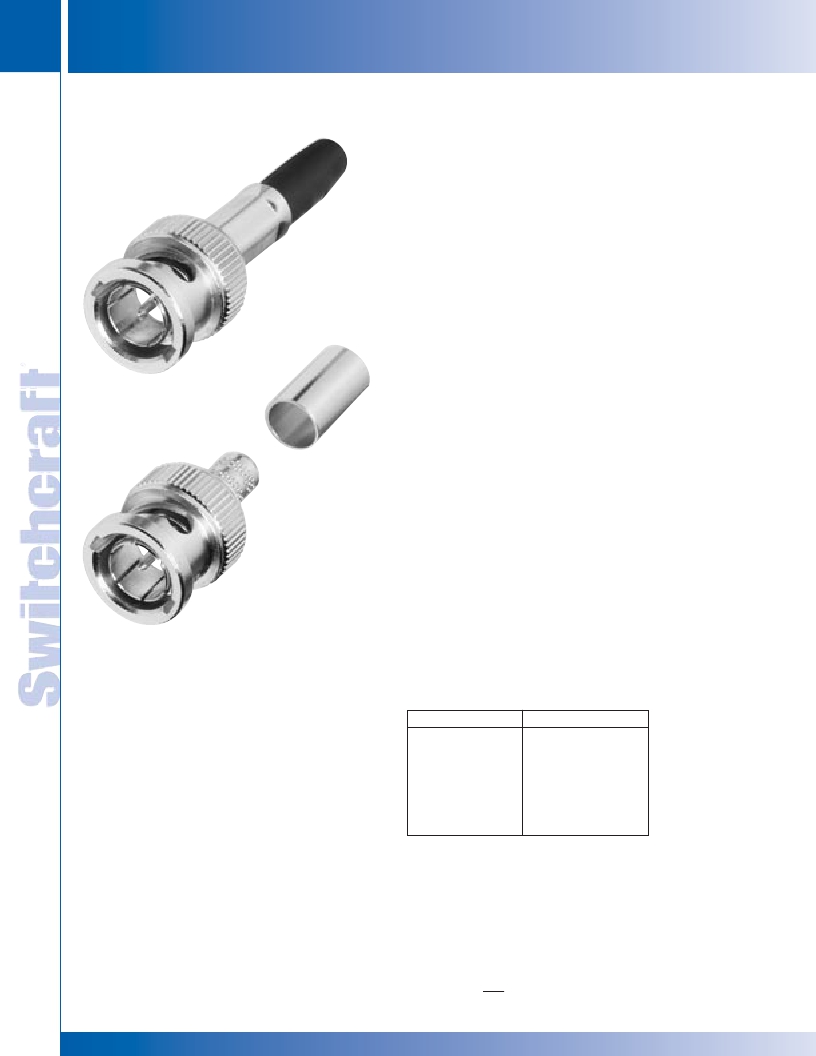

HP75BNC SERIES BNC CONNECTORS
Switchcraft Inc. introduces a complete line of true 75 Ohm BNC cable
mount connectors. This new series was developed for the broadcast
industry, or wherever true 75 Ohm impedance BNC's are used. The
HP75BNC Series is available in a wide range of styles, to
accommodate the most popular types of coaxial cables. All are crimp
terminated using standard crimping tools.
FEATURES AND BENEFITS
? True 75 Ohm impedance
? Gold-plated center pins for increased life
? Available for a wide range of cable types
? Outstanding electrical performance
? Rugged nickel-plated, machined shells
SPECIFICATIONS
Electrical
Characteristic Impedance: 75 Ohms
Voltage Rating: 500 Volts RMS
Return Loss: Less than -25 db at 3 GHz
HP75BNC9
Insulation Resistance: 5000 Megohms min
MECHANICAL
Lifecycles: 500 min
Center Contact Retention: 6 lbs. min
Coupling Mechanism: 100 lbs. min
Force to Engage: 2.5 lbs. max
ENVIRONMENTAL
Thermal Shock: -65° C to 165° C
Moisture Resistance: Mil Std 202
Corrosion: Mil Std 202
Flammability: UL 94-VO
Vibration: Mil Std 202
Solvent Resistance: Mil Std 202
FINISH
Body/Bayonet: Nickel-plated copper alloy
Center Conductor: 50 mi gold-plated copper alloy
ORDERING INFORMATION
Part Number
HP75BNC1
HP75BNC2
HP75BNC6
HP75BNC7
HP75BNC9
HP75BNC10
HP75BNC12
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Cable Type
Belden #8241
Belden #8281B
Belden #1695A
Belden #1694A
Belden #1505A
Belden #1506A
Belden #1855A
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
